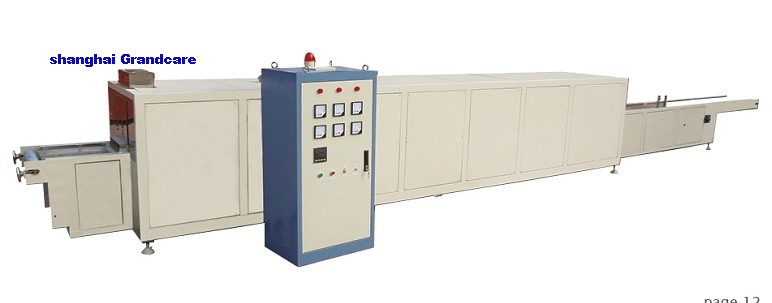

Electrical Annealer For Vial Making Machine
Ⅰ.Equipment Function SHGC-DRTL300 Annealer of Electrical Heating is used to anneal vials to remove the effect of internal stress of vials. Ⅱ. Structure Function 1. It is made up of entire steel, assembled by part, transported easily and installed rapidly. 2. It is used by the electrical heating and is controlled automatically without pollution. 3. It is heated by radiation and the temperature of the annealer chamber is equal. 4. The measure of preserving heat is suitable with the economy of electricity consumption. Ⅲ. Technology Paramaters 1. The width of the net belt: 300mm,400mm.
2. The length of the annealer chamber:380mm
3. The installed capacity of the electric healer:20KW
4. The speed of service of the net belt: 0.05-0.65m/min
5. The height of the products: 40mms(standard). If your products higher than the standard, we can make you a new one according to your order.
6. Control mode: Auto control.
7. The maximal annealing temperature: 700
8. Adjustable temperature: 0-700°
9. Equipment weight: 1.5T
10. External Size of the equipment : 7500mm ×930mm×1100mm( standard size.)
Ⅳ. Structure Explanation
The equipment is mainly made up of the annealer body, the drive system, the electric heater and the electrical box. The annealer body includes the heating part, the warming part and the slowly cooling part. For the easy transportation, the annealer body can be made into two parts which can be connected according to the order when being installed. The drive system includes the electric motor of speed regulation, the reduction gear, the net belt, the drive rod and so on. |
